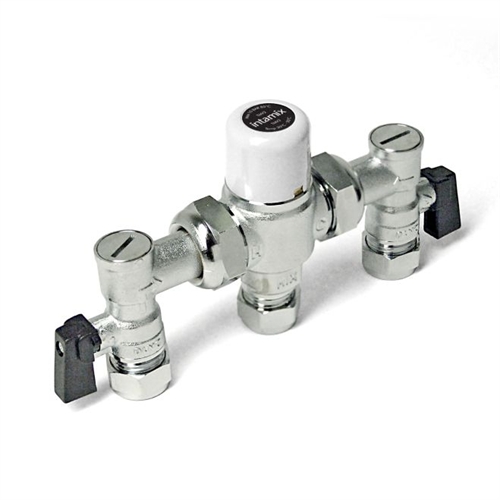

Intamix Failsafe TMV Isolating Mixing Valve – 15mm

A TMV2 & TMV3 approved  failsafe thermostatic mixing valve for safely blending hot and cold water feeds to a safe water temperature. The valves have isolating service valves to shut off the water supply without any disruption

• TMV2 & TMV3 Scheme approved
• For 15mm pipe size
• Built in strainers to help filter out impurities in the water supply
• Delivers temperature safe  blended hot water to taps, showers & water outlets
• Compact, spacesaving design
• Made by Intatec – specialists in safe water temperature controls

Areas of Use

Healthcare, Nursing Homes, Schools & Educational, Leisure Centres, Domestic Bathrooms

Technical Information / Dimensions

Temp adjustment range: 30-50 degrees C
Temperature stability: +/- 2 degrees C
Max inlet temperature: 85 degrees C
Operating pressure: 0.2-10 bar
Height:98mm , Width:132mm (pipe inlet centres)
